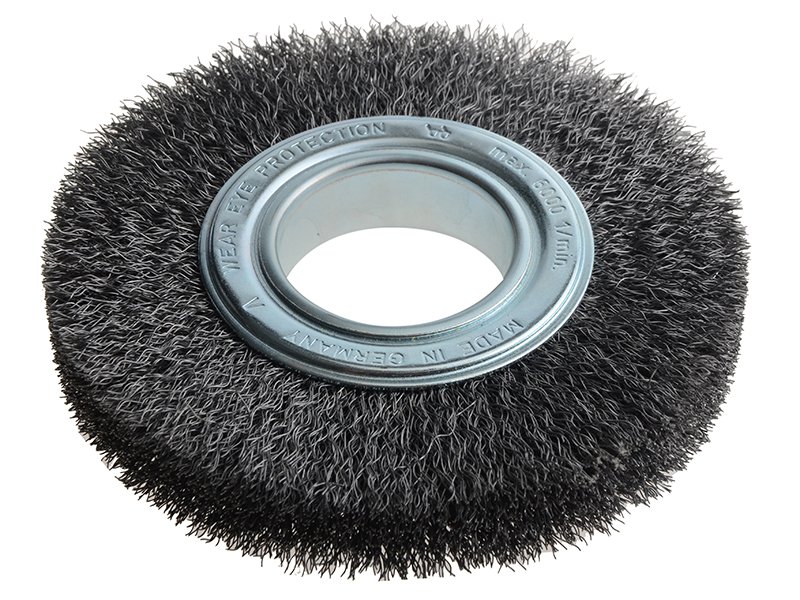

Wheel Brushes filled with crimped wire are used for the purpose of obtaining different surface finishes.
For the removal of rust, paint and dirt, for roughening, de-burring. Stripping or polishing.
A decisive factor for choosing the most suitable brush is the wire and tube diameter. Brushes with a larger tube diameter are filled with more wire, are more aggressive and have a longer life. Some of the brushes are supplied with adaptor sets that allows easy mounting on all popular grinding machines.
The adaptors have the following dimensions:
Set 1: 30, 22.2, 20, 16 & 12mm, 1in & 1/2in.
Set 2: 40, 32, 22.2, 20, & 16mm, 1in & 1/2in.
Set 3: 50, 32, 22.2, 10, & 16mm, 1in & 1/2in.
Set 4: brushes with metal discs bore 50.8 and double keyway 7x13; plus adaptor to bore 30.
Diameter. 150mm.
Width. 23-25mm.
Bore.13mm.
Wire Gauge. 0.30/0.35.
Wire Type. Steel Crimped.
Max R.P.M. 6,000.
