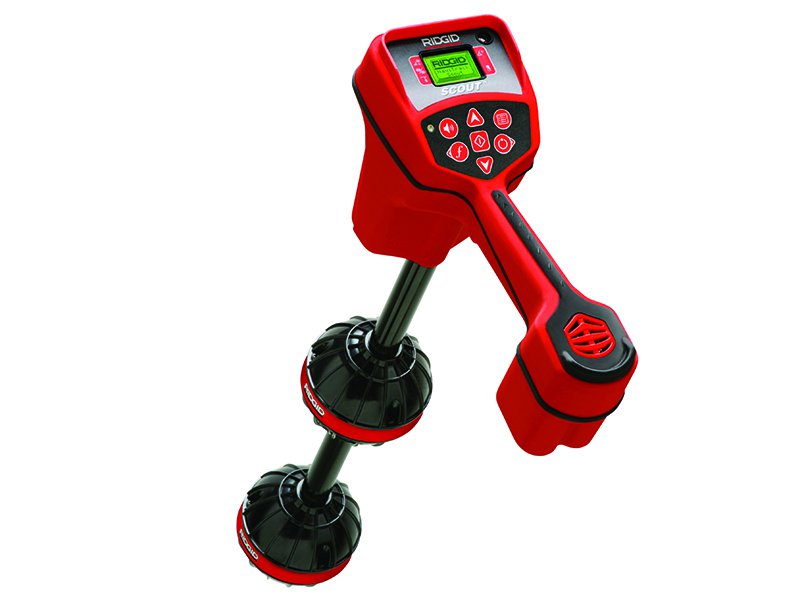

RIDGID NaviTrack Scout® Locator 19243

The RIDGID NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) location using multi-directional locating technology. The multi-directional antenna technology sees the entire signal at all times. Simply maximise the signal strength and you have found the target. No nulls or false peaks to complicate the locate.

This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate. Depth is automatically calculated and displayed when over the target.

Meets EN 55022 Class B requirements.

Specification

Power Source: 4 x C-Cell Batteries (Not Included).
Battery Life: Approximately 24 Hours.
Weight: 1.4kg.

Standard Frequencies

Sonde: 16 Hz, 512 Hz, 640 Hz, 874 kHz and 33 kHz.
Line Trace: 128 Hz, 1 kHz, 8 kHz and 33 kHz.
Passive AC Line Trace: 60 Hz, 50 Hz.
